DC / AC INVERTERS
SINUSOIDAL WAVE
250VA ÷ 3000VA


The inverters produce a real sinusoid wave, not a mere pseudo or modified sinusoid, therefore there is a low harmonic content.

Each inverter is provided of visual signalings (LEDs) including: alarm (for overload, or low Vin or fault) and internal overtemperature.

The diagnostic (RMT) monitors the presence of input voltage and the correct value of the overall output voltage. The alarm contacts are clean contacts (relay 10A @ 250VAC) SPDT.

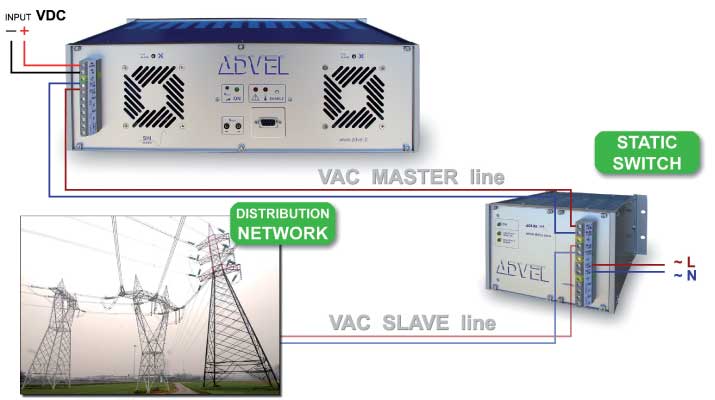

TYPICAL SYSTEM COMPOSED OF A INVERTER (SHI) COUPLED WITH A SECONDARY AC-LINE, THROUGH A STATIC SWITCH (SHI-SW)



500VA
SHI-RQ6p2_501
Wall mounting subrack (3HE)
Front terminal boards




750VA SHI-RQ8p2_751
Wall mounting subrack (3HE)
Front terminal boards




1000VA
SHI-RK8p2_1001
Rack 19” 3HE mounting
Rear terminal boards




2500VA SHI-RQ8p2-4H_2501
Rack 19” 4HE mounting
Front terminal boards
