“HOT” PLUGGING / UNPLUGGING MODULES

SUBRACKS

AC / DC POWER SUPPLIES
BATTERY CHARGER
> 500W ÷ > 3000W



MAIN CHARACTERISTICS

The modules let the hot plug-in/out, greatly simplifying installation and maintenance phases.



The racks are available as “CB” (Battery Charger) with complete management of the battery (recharge, supervision, ...) allowing the realization
of UPS-DC systems.



The subracks are fully customizable (internal wiring, alarms and alerts, circuit breakers, line inputs/outputs, mounting type, ...).


The racks are ready to be placed in series or in parallel each other (internal decoupling diodes) for redundant systems of all types (100% system redundancy, N +1, N +2, ...). Moreover the voltage drop of the diode is internally offsetted.

Current sharing (both passive, and active type) between modules/racks in parallel: this device allows to equally share the load current between modules, avoiding imbalances of power delivered and improving the reliability of the system.

The diagnostic (RMT) monitors the presence of input voltage and the correct value of the overall output voltage and of the single module (settable thresholds RMT-me) The alarm contacts are dry contacts (relay 10A @ 250VAC) SPDT.



TYPICAL UPS-DC SYSTEM COMPOSED OF 2 SPF PARALLEL / REDUNDANCY SUBRACKS

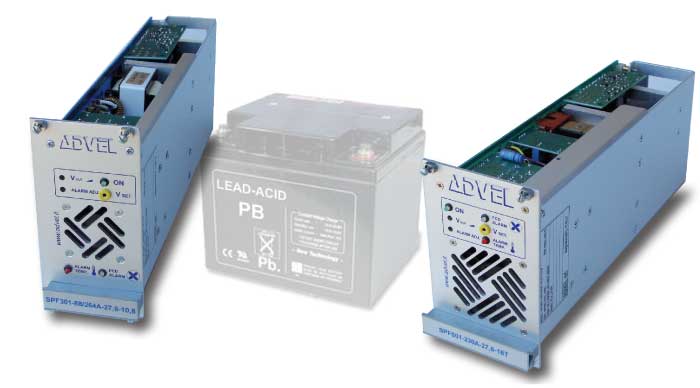

AC/DC & DC/DC SUBRACK PLUG-IN MODULES



250W ÷ 600W MODULES

EMBEDDED DEVICES
D RMT FAN-FCD

Special Voltages
available on request

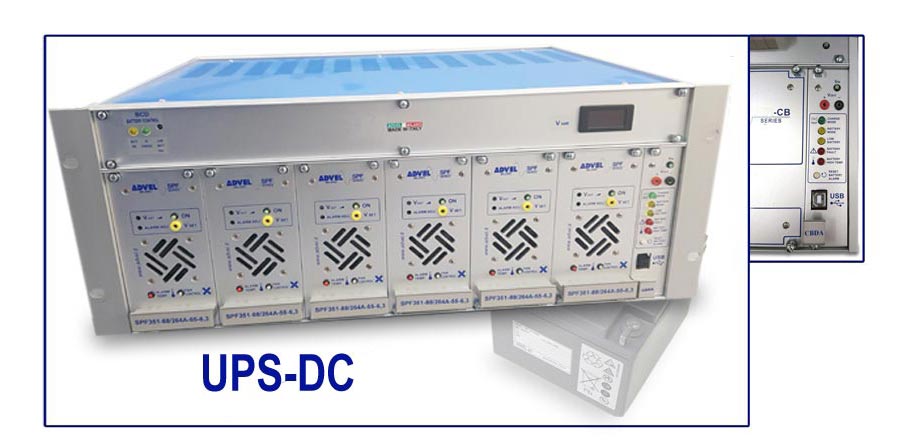

UPS-DC
BCD battery control device


19” SUBRACKS

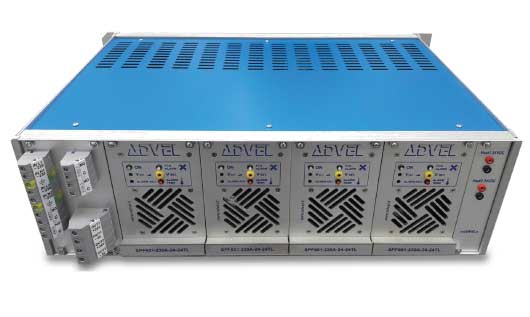

Subrack 19” 4HE
Rear terminal boards
Forced ventilation modules



WALL MOUNTING SUBRACKS

Wall mounting subrack (4 HE)
front terminal boards
Forced ventilation modules




Wall mounting subrack (3 HE)
front terminal boards
Forced ventilation modules
