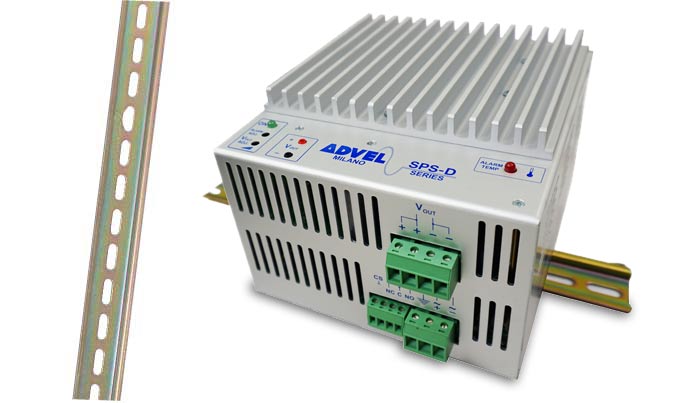

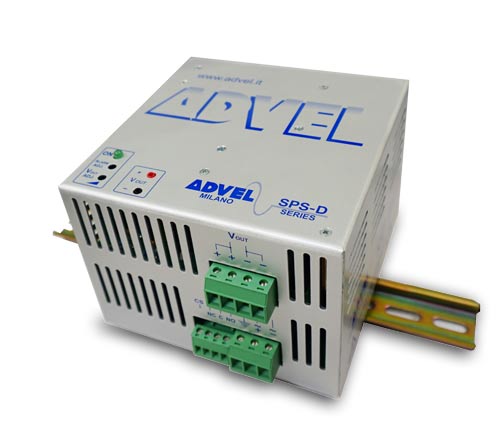

DIN RAIL

AC / DC POWER SUPPLIES

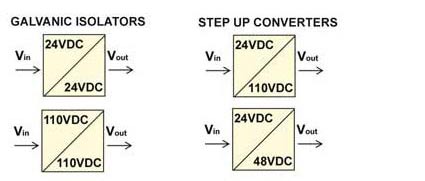

DC / DC CONVERTERS
25W ÷ 1000W


The power supplies are ready to be placed in series or in parallel each other (internal decoupling diodes) for redundant systems of all types (100% system redundancy, N +1, N +2, ...).

Current sharing (both passive, and active type) between power supplies in parallel: this device allows to equally share the load current between power supplies, thus avoiding an unbalances of power and dissipation of heat, icreasing the reliability of the system.

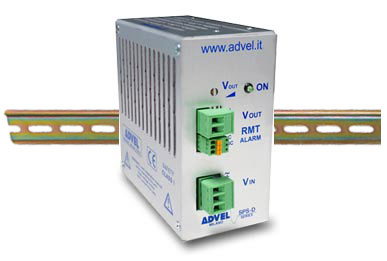

The diagnostic (RMT) monitors the presence of input voltage and the correct value of the overall output voltage (adjustable thresholds ADJ RMT trimmer). The alarm contacts are dry contacts (relay 10A @ 250VAC) SPDT.

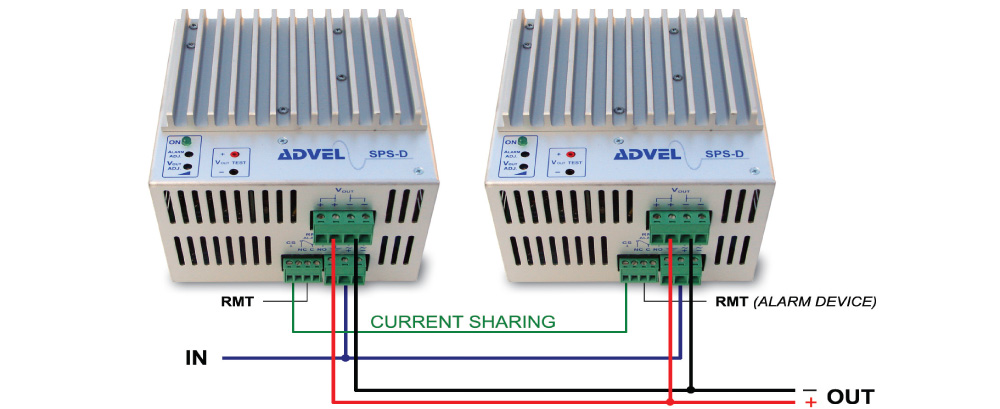

TYPICAL SYSTEM COMPOSED OF 2 SPS-D PARALLEL / REDUNDANCY MODULES

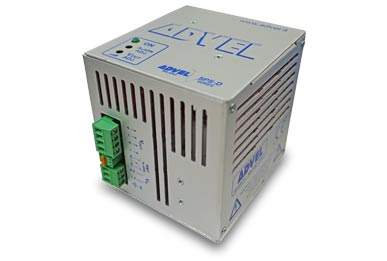

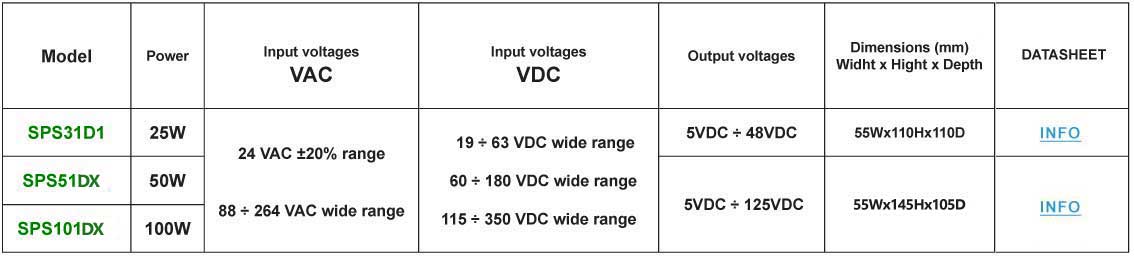

25W SPS31D1




50W SPS51DZ1

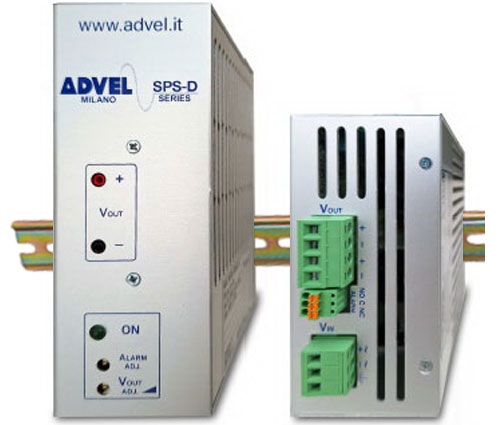

100W SPS101DZ1

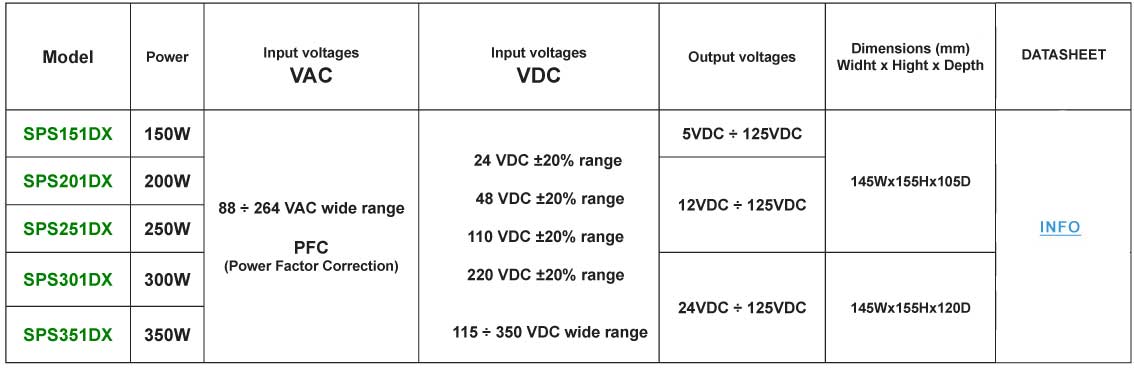

150W SPS151DX
200W SPS201DX
250W SPS251DX




300W SPS301DX
350W SPS351DX

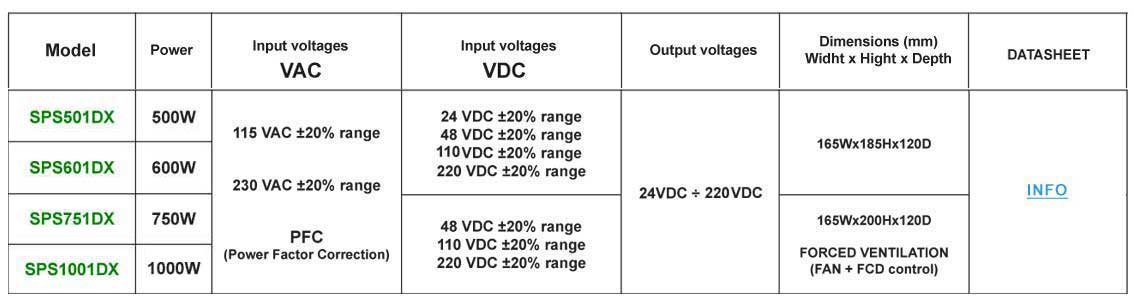

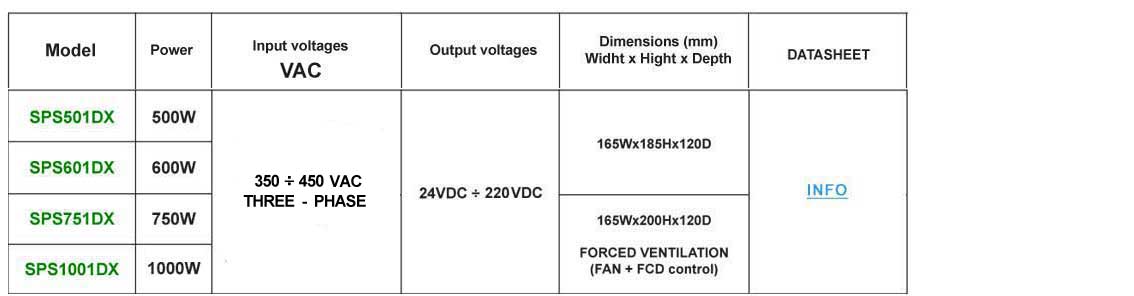

500W SPS501DX
600W SPS601DX




750W SPS751DX
1000W SPS1001DX




50W SPS51DX3





DOUBLE/TRIPLE OUTPUT

Versions with "B" power boost option available from 150W to 600W models.
(I OUT + 50% 5 sec / + 100% 200ms max. )

Special Voltages available on request
