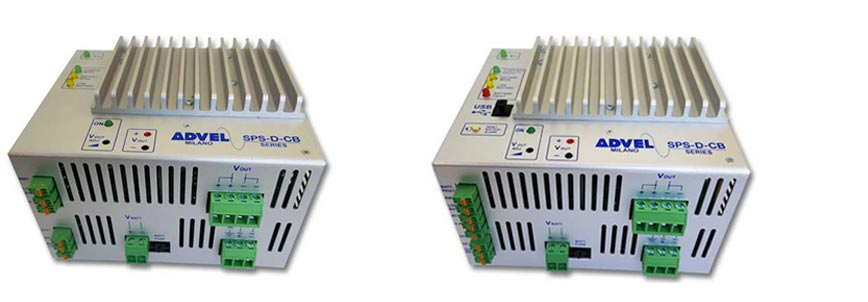

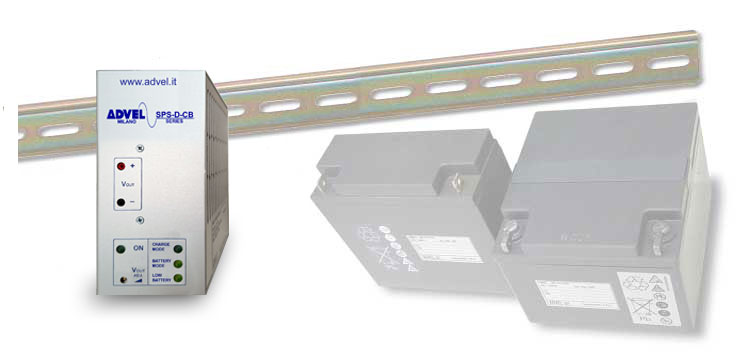

DIN RAIL

AC / DC POWER SUPPLIES
BATTERY CHARGER
50W ÷ 1000W




MAIN CHARACTERISTICS

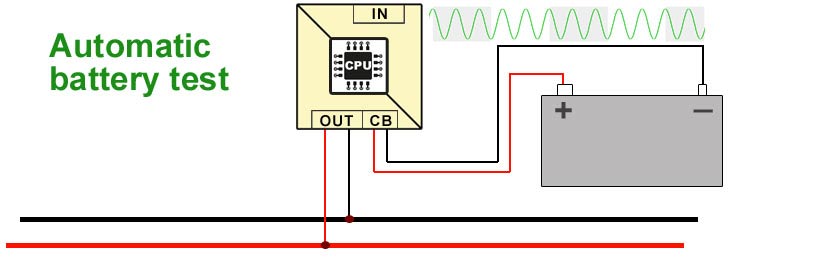

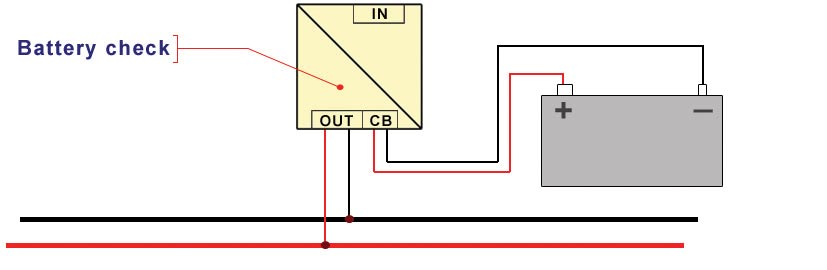

Power supplies are also available as “CB”(Charger) with complete management of the battery (recharge, supervision, ...) allowing the realization of UPS - DC systems.

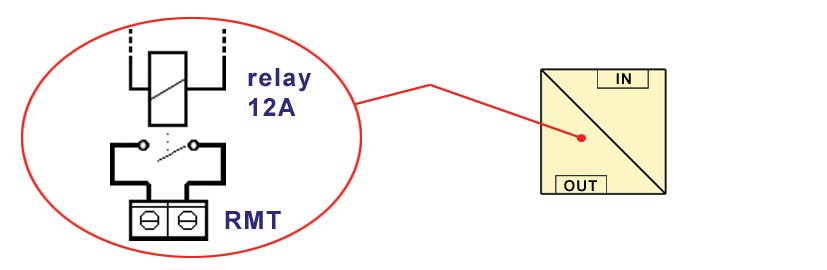

The diagnostic (RMT) monitors the presence of input voltage and the correct value of the overall output voltage (adjustable thresholds: ADJ RMT trimmer). The alarm contacts are dry contacts
(relay 10A @ 250VAC) SPDT.

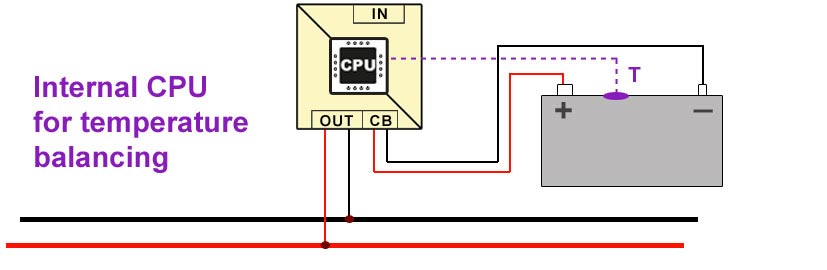

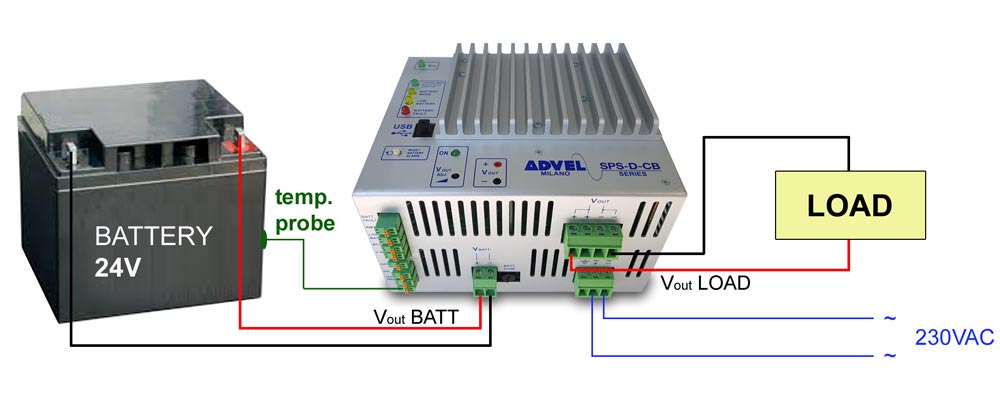

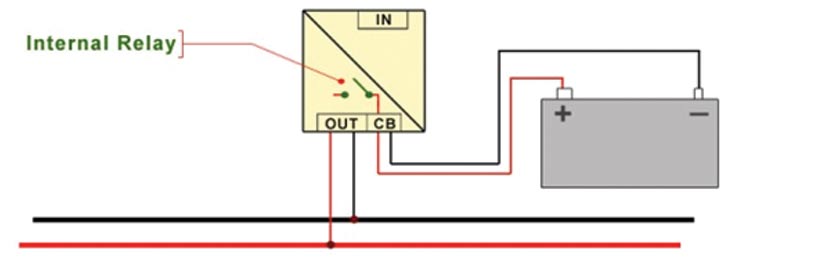

TIPICAL UPS-DC SYSTEM

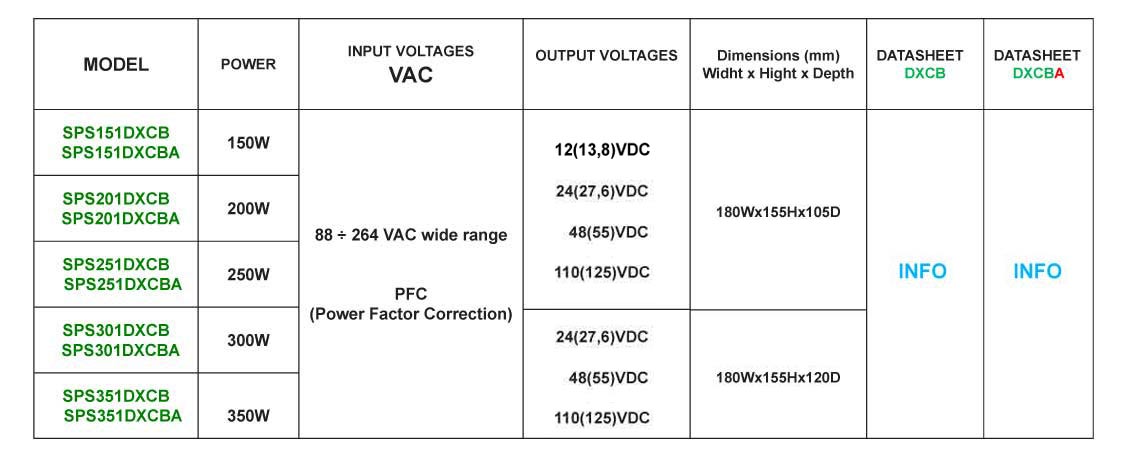

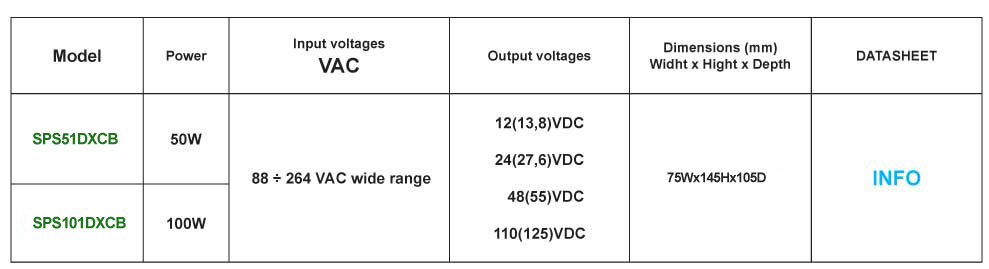

50W SPS51CBDZ
100W SPS101CBDZ




150W SPS151CBDZ
200W SPS201CBDZ
250W SPS251CBDZ




300W SPS301CBDZ
350W SPS351CBDZ

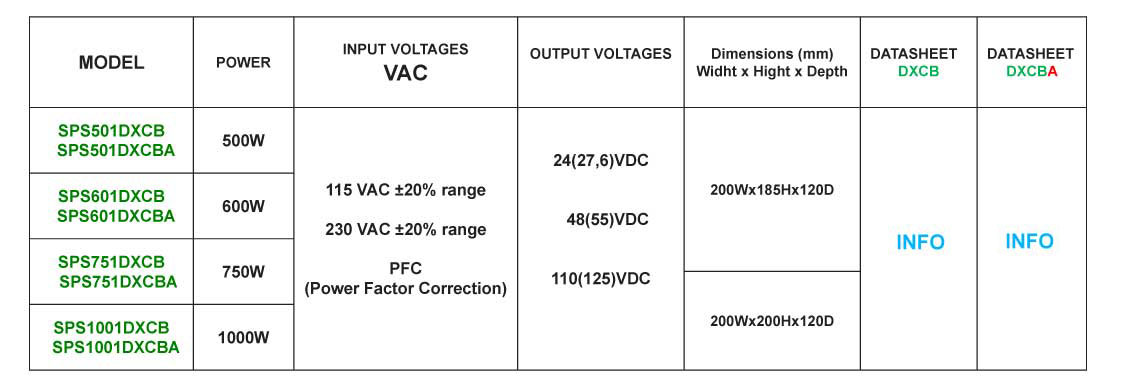

500W SPS501CBD1
600W SPS601CBD1




750W SPS751CBD1
1000W SPS1001CBD1


     Special Voltages available on request
